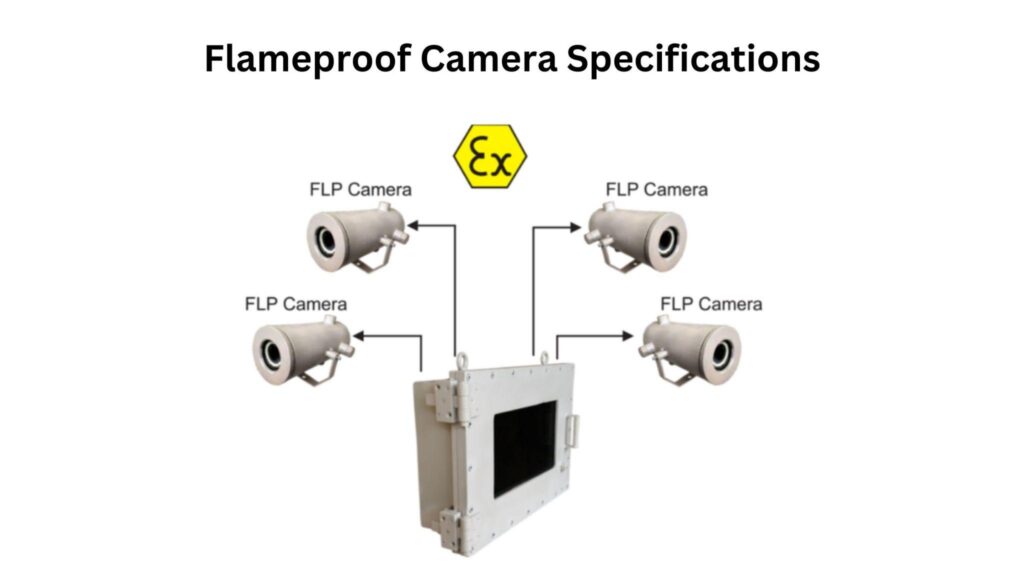

Flameproof camera enclosures are essential for ensuring the safety and functionality of surveillance equipment in hazardous environments. This blog post will cover the specifications, features, and applications of two types of flameproof camera enclosures offered by Flameproof Instrumentation.
Ensuring safety in hazardous environments is paramount, and using the right equipment is crucial. Flameproof camera enclosures provide protection for cameras in areas where explosive gases or dust may be present. This guide will detail two types of enclosures, their features, and their applications.
This flameproof camera enclosure is ideal for:
This flameproof camera enclosure is suitable for:
Flameproof Computer with Trolley:
| Feature | Flameproof Camera Enclosure 1 | Flameproof Camera Enclosure 2 | Flameproof CCTV Camera System |
|---|---|---|---|
| Operating Temperature | Up to 55°C | Up to 55°C | Up to 55°C |
| Humidity | 90% at 40°C | 90% at 40°C | 90% at 40°C |
| Enclosure Material | LM6, Aluminum | LM6, Aluminum | LM6, Aluminum |
| Coating | Powder coated | Powder coated | Powder coated |
| Weight | 4.3 Kg MAX. | 10 Kg | 35 Kg (Trolley) |
| Cable Entry Options | M20 or 1/2" NPT or 3/4" NPT (select any one) | 1/2” NPT OR M20 OR 3/4” NPT (select any one) | 1/2” NPT OR M20 OR 3/4” NPT (select any one) |
| Mounting | Wall mounting / slab mounting type | Wall mounting / slab mounting type | Wall mounting / slab mounting type |
| Gas Group | IIA & IIB, Zone 1 & Zone 2 | IIA & IIB + H2, Zone 1 & Zone 2 | Group I & IIA & IIB |
| Application | Hazardous area | Hazardous area | Hazardous area |
| Weather Protection | IP 65 | IP 65 | IP 65 |
| Specification | Flameproof Camera Enclosure 1 | Flameproof Camera Enclosure 2 | Flameproof CCTV Camera System |
|---|---|---|---|
| Internal Dimensions | L: 180 mm, D: 70 mm, GID: 65 mm | L: 350 mm, H: 125 mm, GID: 115 mm | L: 800 mm, H: 980 mm, D: 450 mm (Trolley) |
| Camera Fitment Space | L: 180 mm, D: 70 mm, GID: 65 mm | L: 350 mm, H: 125 mm, GID: 115 mm | L: 800 mm, H: 980 mm, D: 450 mm (Trolley) |
| Application Area | Flameproof Camera Enclosure 1 | Flameproof Camera Enclosure 2 | Flameproof CCTV Camera System |
|---|---|---|---|
| Industrial Surveillance | Suitable | Suitable | Suitable |
| Chemical Plants and Oil Refineries | Suitable | Suitable | Suitable |
| High-Risk Environments | Not as suitable for extreme environments | Highly suitable, including hydrogen areas | Highly suitable, including hydrogen areas |
Choosing the right flameproof camera enclosure or CCTV camera system is critical for maintaining safety and operational efficiency in hazardous environments. Whether you need a compact solution for smaller setups or a more robust system for extensive surveillance needs, Flameproof Instrumentation offers reliable products to meet your requirements.
